SPX328

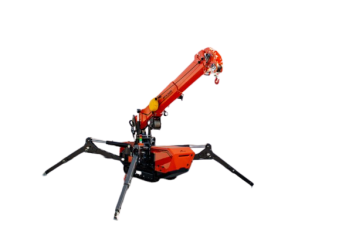

The SPX328 mini crane is designed for a smooth user experience, with minimum training required and a touchscreen that guides operators through the different working phases, making even the most difficult tasks easy to perform. It's suitable for both entry-level operators and skilled users, and ideal for large hiring companies.
Key features
- Radio Remote Control
- Fully electric rechargeable lithium battery pack.
- Light & Versatile
- Vacuum Manipulator
- Extendable Tracks 45°
- 360° Rotation
- Electronic LMI
- 1000kg runner jib
- 500kg electric jib
- Play & Play attachments
| Column title | Column title |
|---|---|
| Crane capacity | 2800kg |
| Max working radius | 10m |
| Max lifting height | 10.5m |
| Rope length (max) | 63m |
| Dimensions (folded) | 2950(l) x 730(w) x 1610(h)mm |
| Weight (unladen) | 2300kg |
| Point loadings | Due to the many variables involved, point loadings are only available on request |
| Hook speed | 15.1-31.8m/min |
| Telescopic system | boom length 10.4m |
| Traction system | travel speed 1.7 km/h |
| Traction system | gradability 20° |
| Traction system | track ground pressure 0.44kg/cm² |
